ELMO IS NO LONGER SELLING PARTS TO ANYONE AND HASN'T DONE SO IN THE LAST 6 YEARS.

WHAT IS ON MY WEBSITE IS ALL THAT I HAVE LEFT.





NEW ! Improved way to find your part number

Please hold down CTRL and press F on your keyboard
A small window should open near the top of your browser. Simply enter the full or partial part number and hit enter.





BELTS





 MXL 180 .281" (TVR)

Tele-Cline Motor Belt  $35.00

2 Left

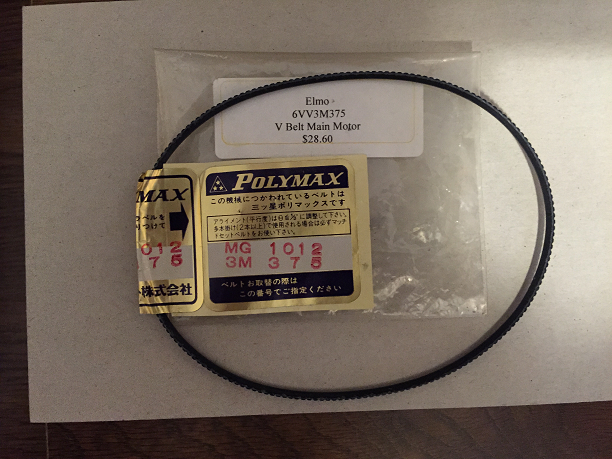

6VV3M375 V Belt Main Motor $28.60

29 Left

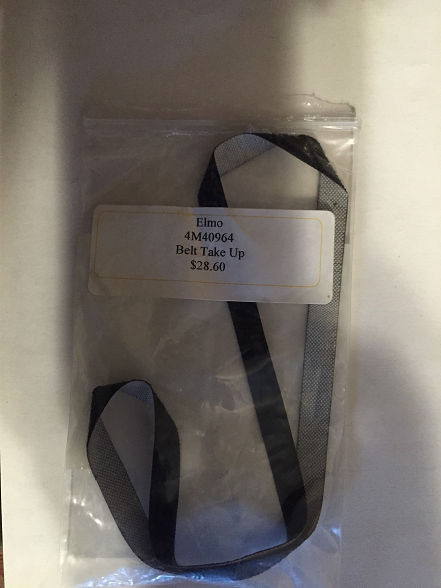

4M40964 Belt Take Up $28.60

18 Left

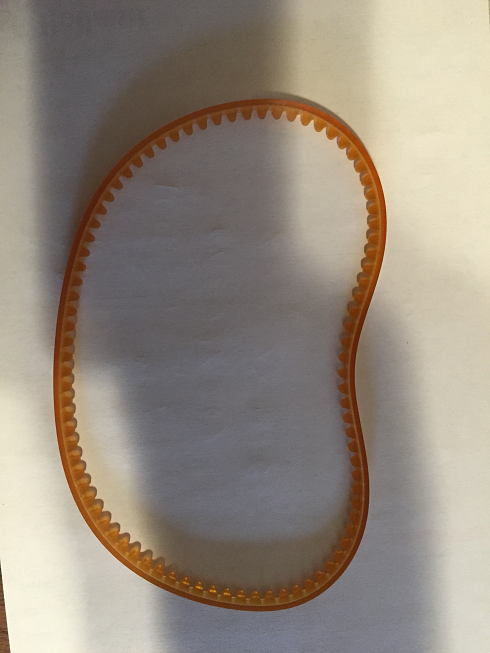

P 412203 Inside Take Up Belt $14.30

12 Left

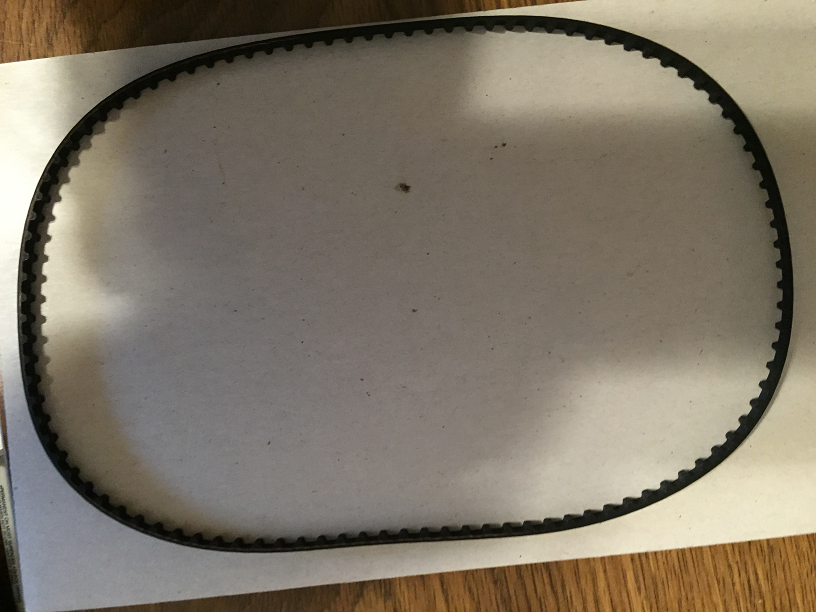

P 412321 Belt Front Arm $22.00

24 Left




6VSS2M438 Synchro Belt Take Up
B 215MXL
$28.00
5 Left



GEARS



4M45795 Gear (1) Rewind $60.00

6 Left

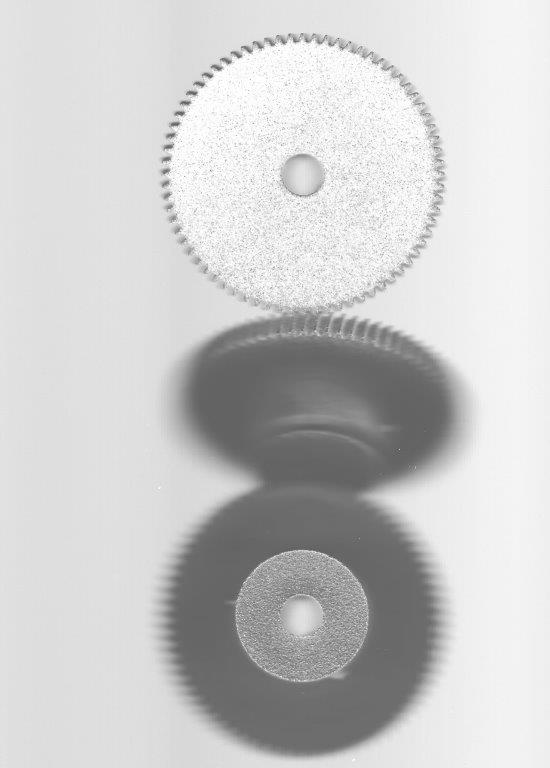

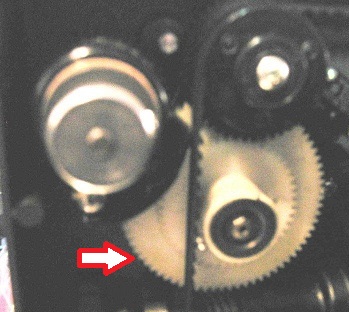

P 412161 B Rewind Gear (Worm) $50.00

Elmo 16 Cl, 16 AL, CX 350 ,CX 550
This gear is used for the take up belt under the (silver or black) cover inside of the projector.

4 Left



P 412232  Metal Gear (2) Rewind    $27.50

10 Left

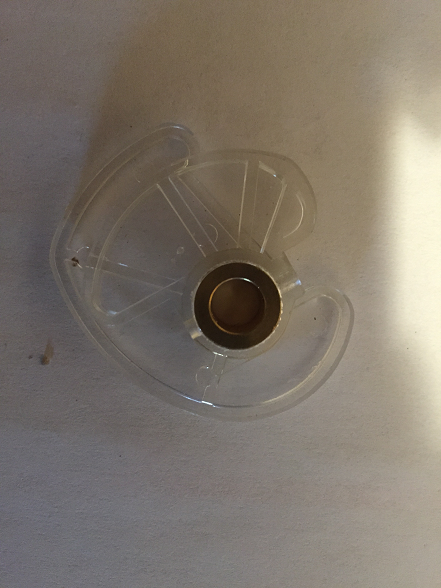

P 412173 Cam Link (1) $30.00

2 LEFT





GREASE & LUBE



Super Lube Synthetic Grease 3 oz Tube  $8.25


Super Lube Oil Pen .25 oz $6.00





SHAFT TAKE UP

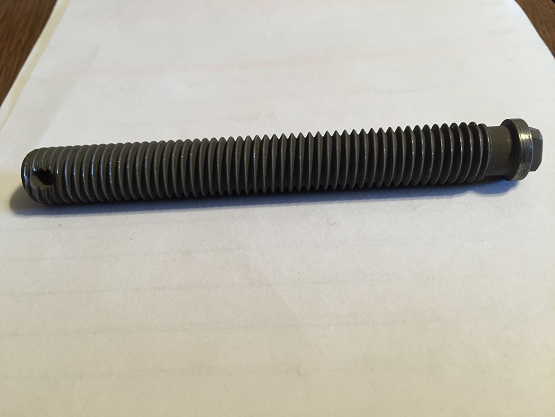

4P8CL0038B Shaft Take UP Kit.

$85.00

Take Up Kits Consists of
(1) 4m41097B Pulley Take Up Shaft
  (1) 6vss2m438 Synchro Belt Take Up
(1) 4P8CL0038B Take Up Shaft

4 Left





COVERS

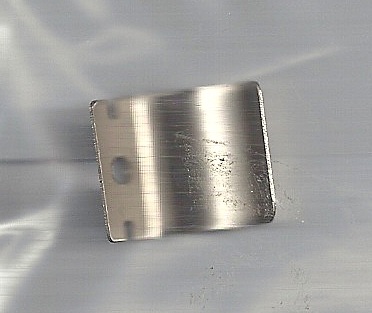

P 412282 Fixed Spring Front Cover 2

with screws

 $2.00

11 Left



P 412282 Fixed Spring Front Cover 2 without screws $1.00

34 Left

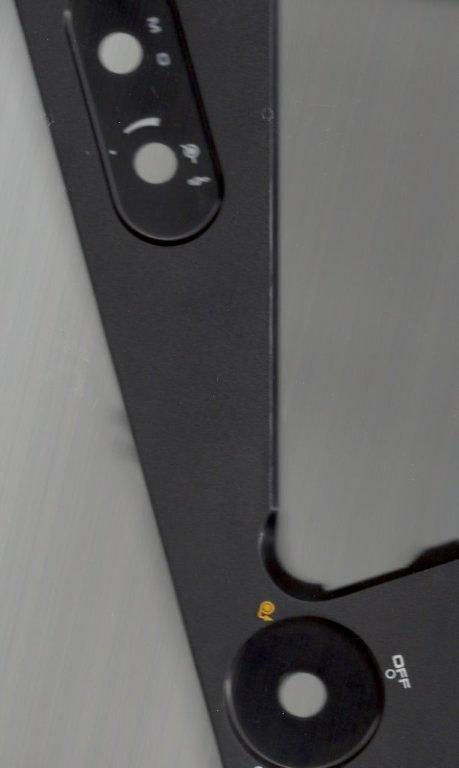

4 P20569 Front Cover (12) $30.00



Now supplied as 1 piece

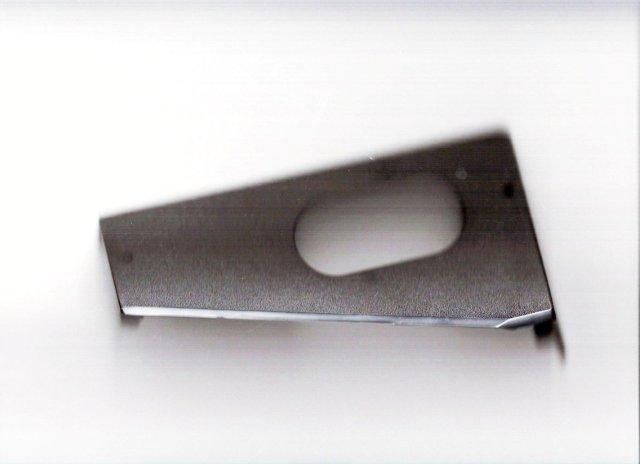

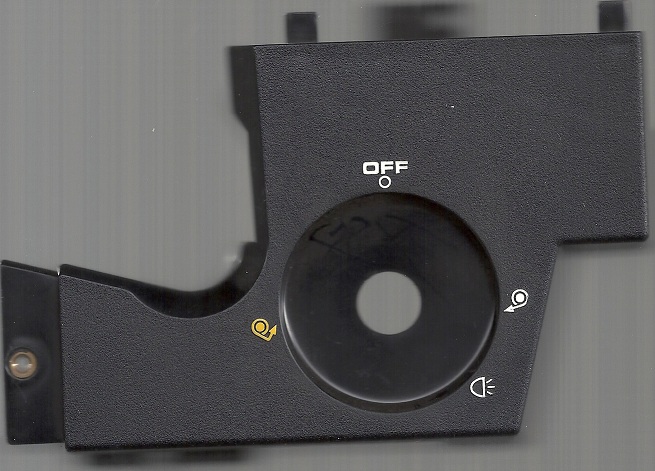

 4 P20732  Front Cover 12 $19.00





6M70300801 Screw For App Plate  $1.00

Many uses in the CL







LEGS & LEG WASHERS

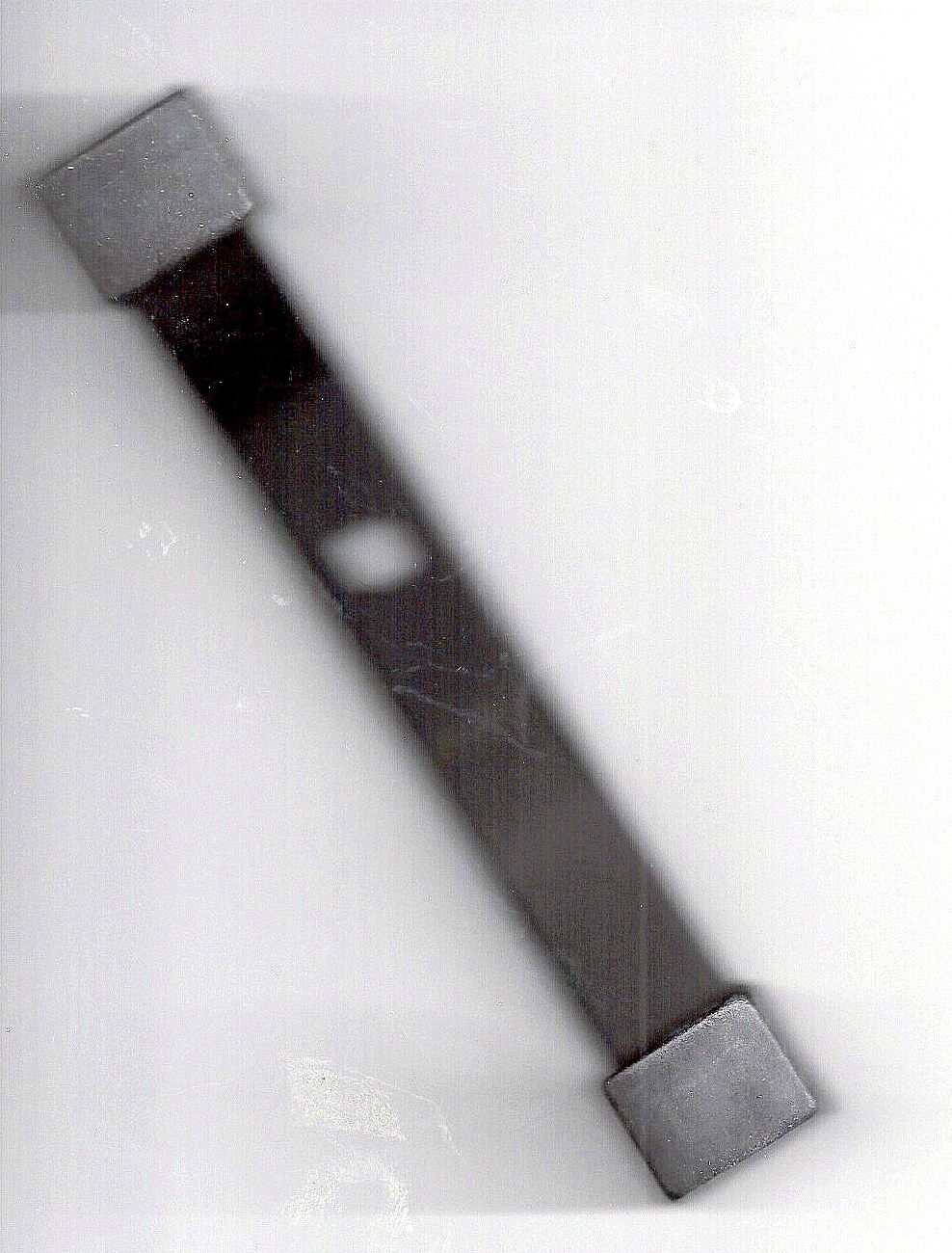

P 412153B Front Leg $16.00

**Rubber feet not sold separately**

6 Left

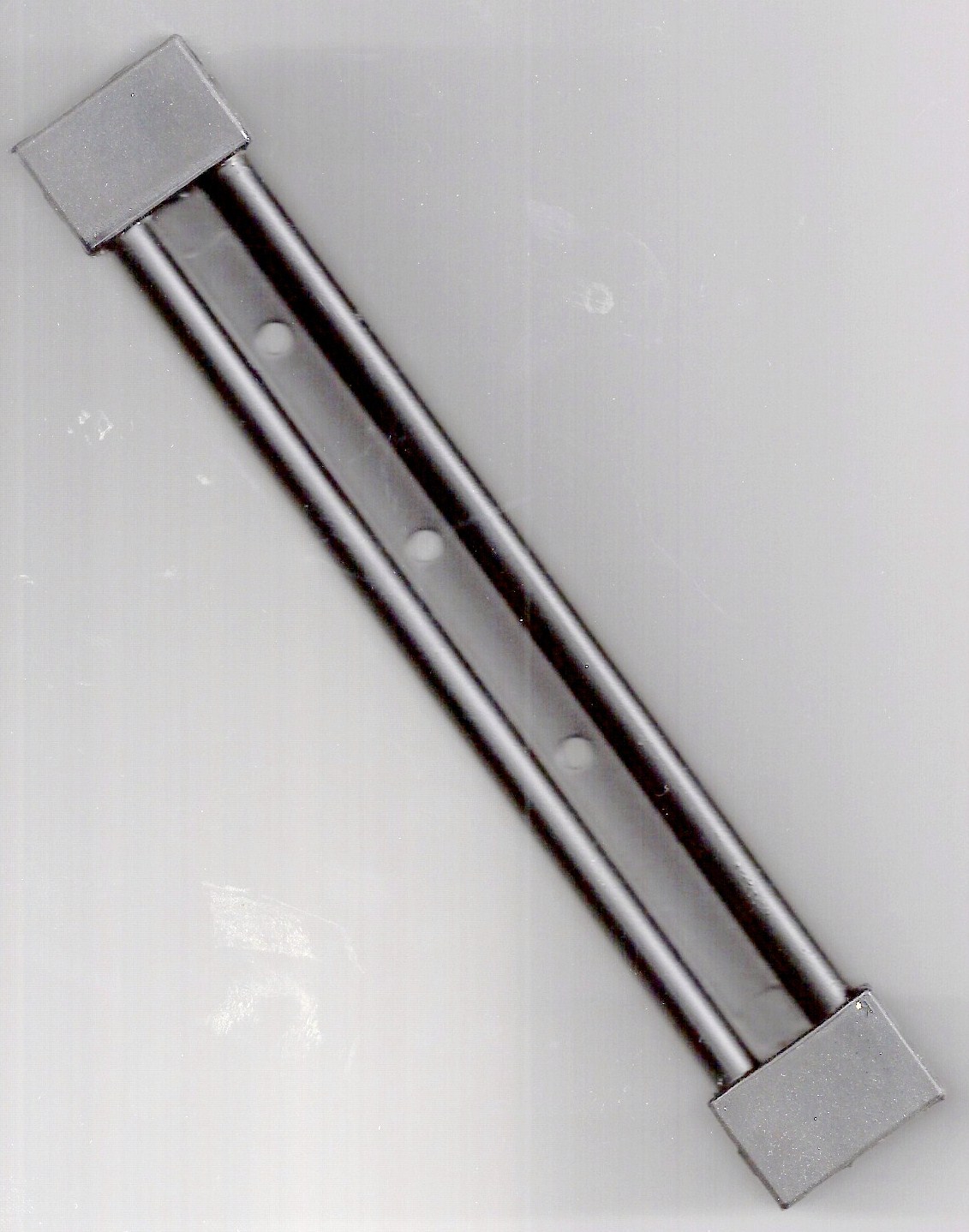

P 414946 Rear Leg $16.00

**Rubber feet not sold separately**

5 Left

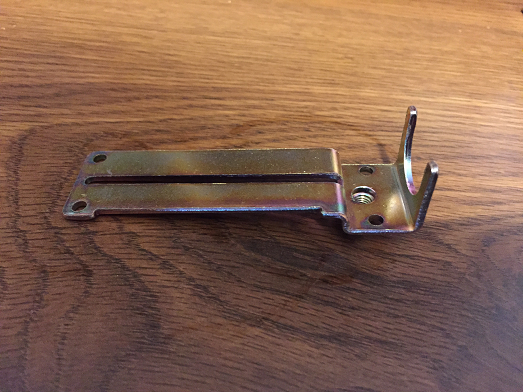

P 412243 Metal Tilting Leg $11.00

4 Left





P 412178B Tilting Leg $10.00

4 Left

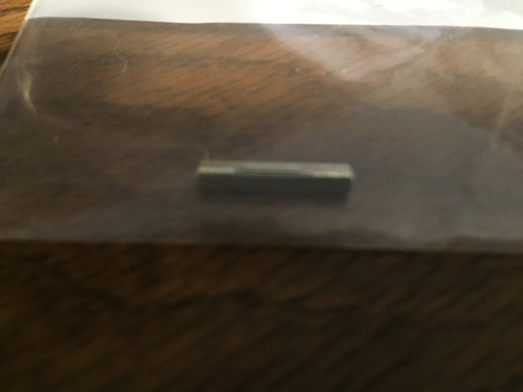

6J330160E G Fastener E Type 3/16 $1.50

13 Left

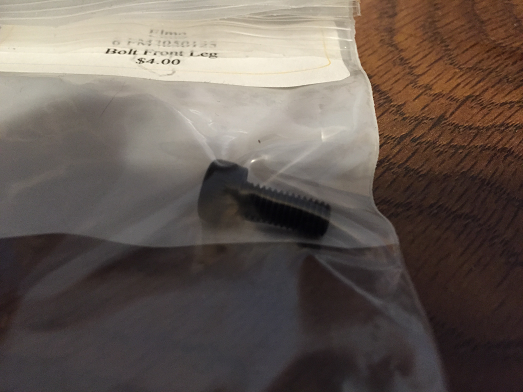

6 FM3050125  Bolt Front Leg $5.00

4 Left

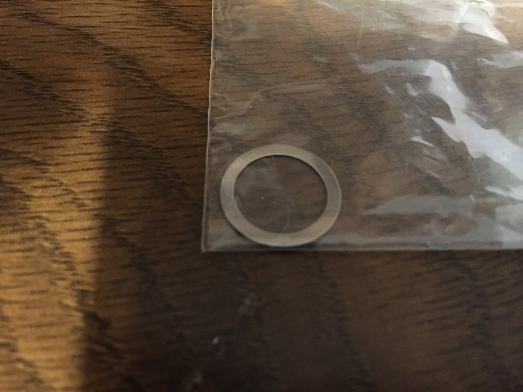

4P54074 Tilting Leg Washer $1.00

4 Left

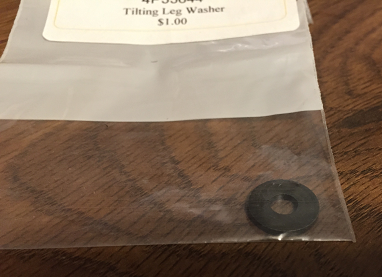

4P55644 Tilting Leg Washer $1.00

7 Left





PLUGS



Bell & Howell & Others
2 Pin Male Plug
$10.00



Bell & Howell & Others
3 Pin Din Plug 1 Left
Same as 5 pin shown below but with 3 pins

$10.00




Bell & Howell & Others

5 Pin Din Plug &10.00



Bell & Howell & Others

Phone Plug, Metal Shield
Standard RCA Size $15.00






ROLLERS

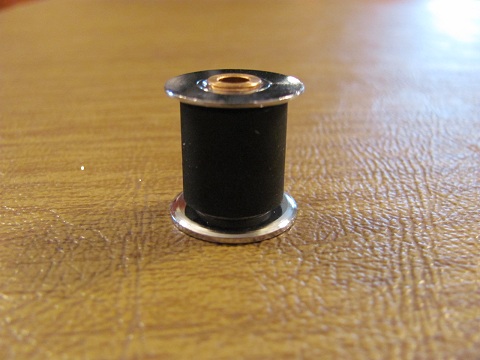

P 412105 Flanged Brake- Roller Spring Type

$35.00 plus core charge of $15.00 each ($50.00 Total)

Return your worn roller to us and we will refund the $15.00 core deposit.
***Plastic cores are NOT accepted***

Total: $50.00
Core charge refunded when returned

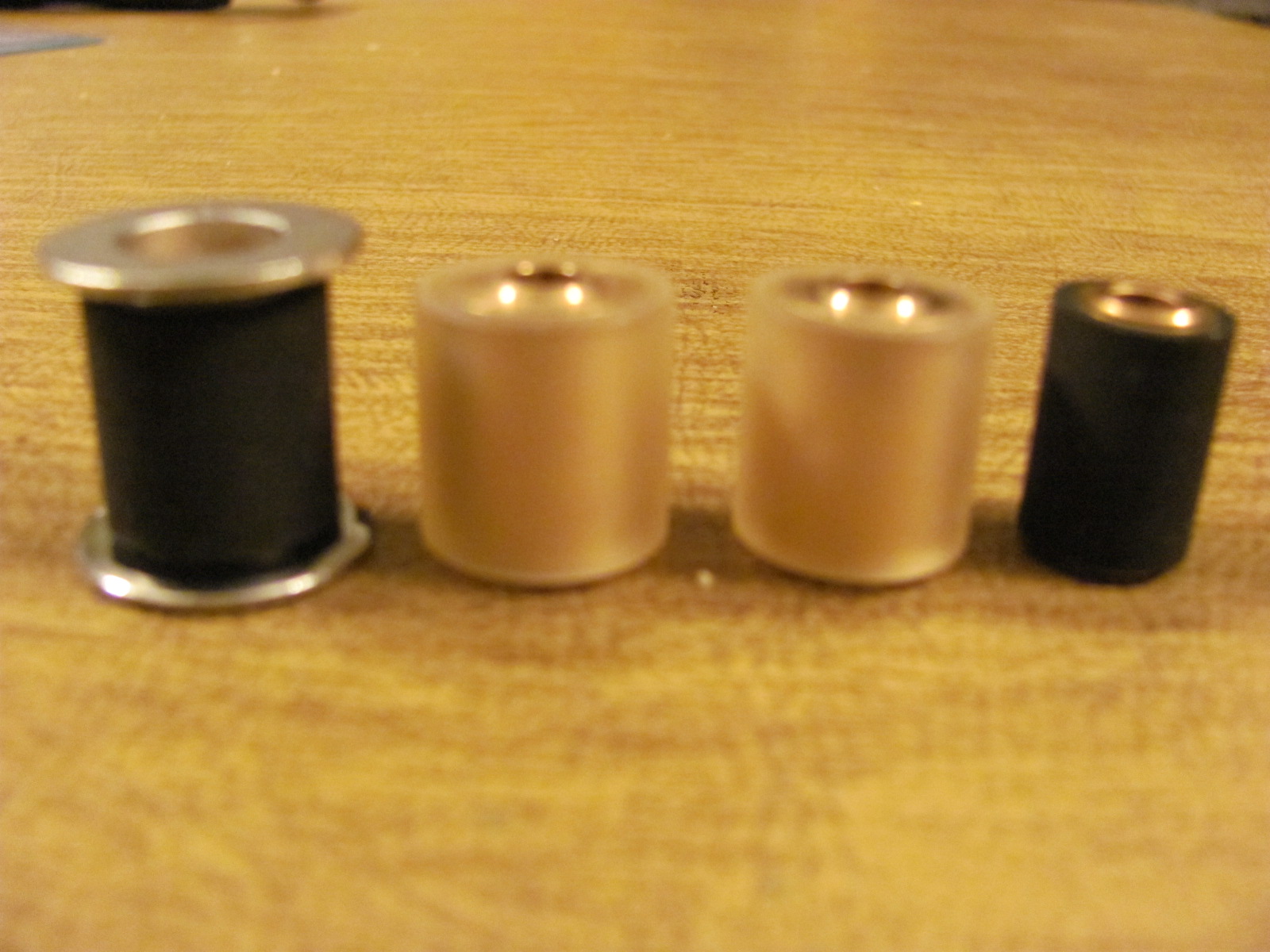

Complete set of 4 Elmo Rollers
16mm 16-CL optical & 16-AL


Replace those deteriorating rubber rollers on your Elmo.



This is a complete kit of all 4 rollers for $100.00 plus a core deposit of $70.00 ($170.00 total)

Return your worn rollers to us and we will refund the $70.00 core deposit.
***Plastic cores are NOT accepted***

Total: $170.00

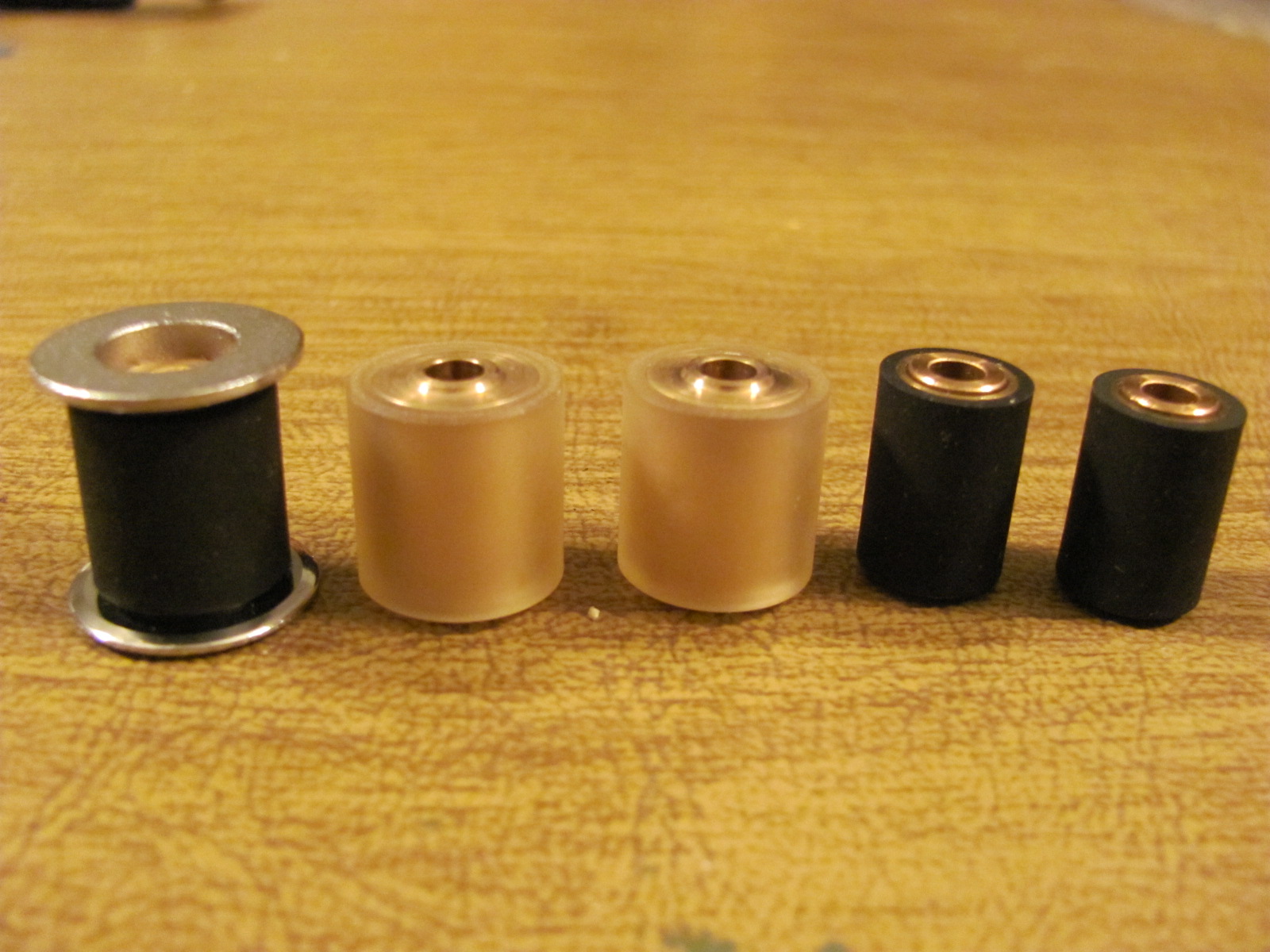

Complete set of 5 Elmo Rollers
16 CL Magnetic
TRV-6, TRV-16G, TRV-16H


Replace those deteriorating rubber rollers on your Elmo.



This is a complete kit of all 5 rollers for magnetic/optical CL, AL machines for $130.00 plus a core deposit of $80.00 ($210.00 total)

Return your worn rollers to us and we will refund the $80.00 core deposit.
***Plastic cores are NOT accepted***

Total: $210.00

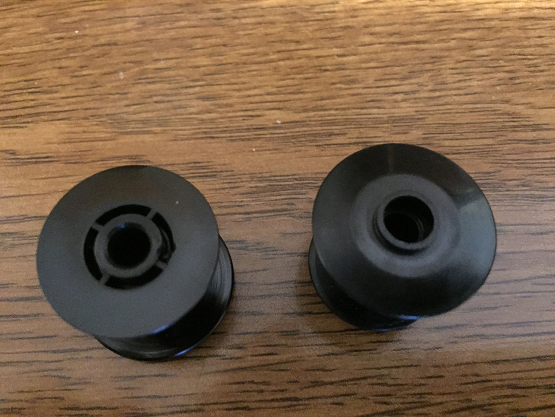

   P 412339   Guide Roller (4)   $7.70

16 Left

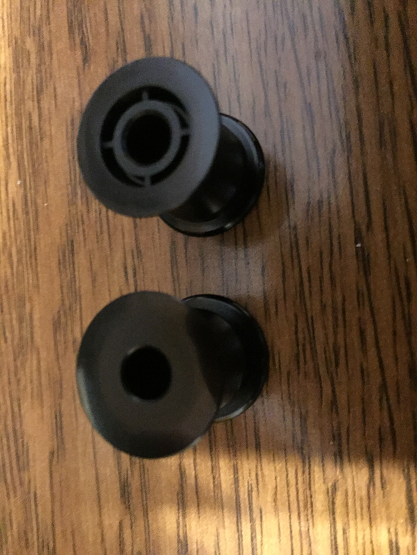

P 412200 Guide Roller (1) $15.00



P 412201 Sprocket Roller   $10.00

2 LEFT





GUIDES / GUIDE ASSEMBLIES

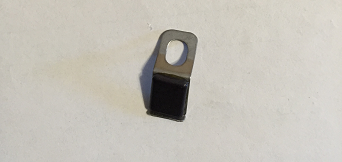

P 413593    Film Guide Assembly   $10.00

3 Left

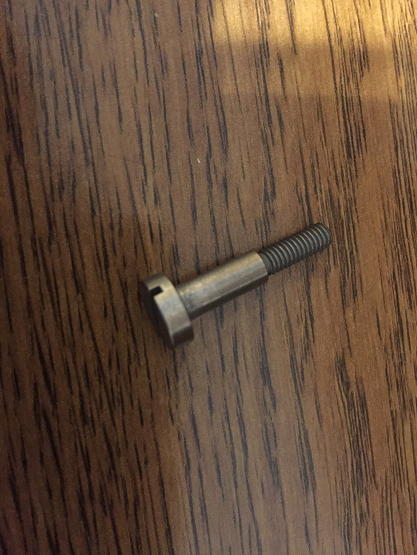

4P55584 Screw Roller Guide 2 $5.00

4 Left







BEARINGS

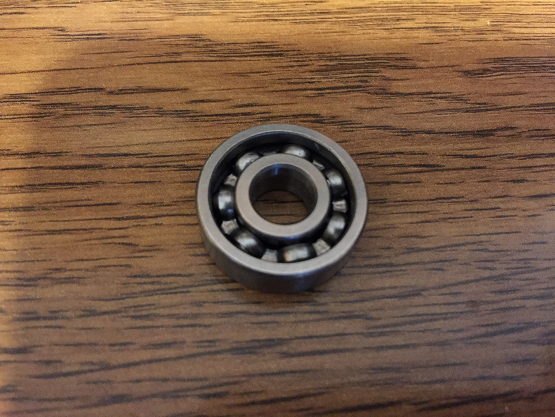

6B20802201    Bearing / Supply Arm    $14.00

8 Left

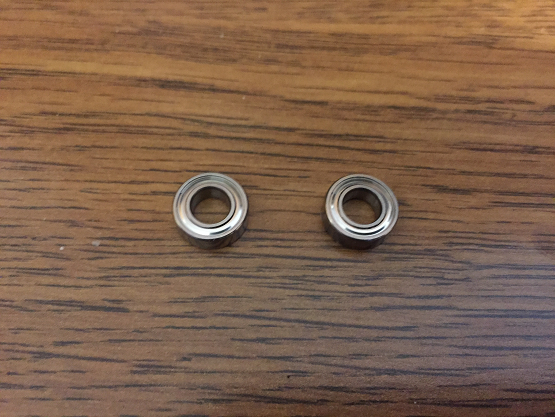

6B20601201 Bearing Take Up / Fly Wheel  $10.00

10 Left





MISC ELMO PARTS

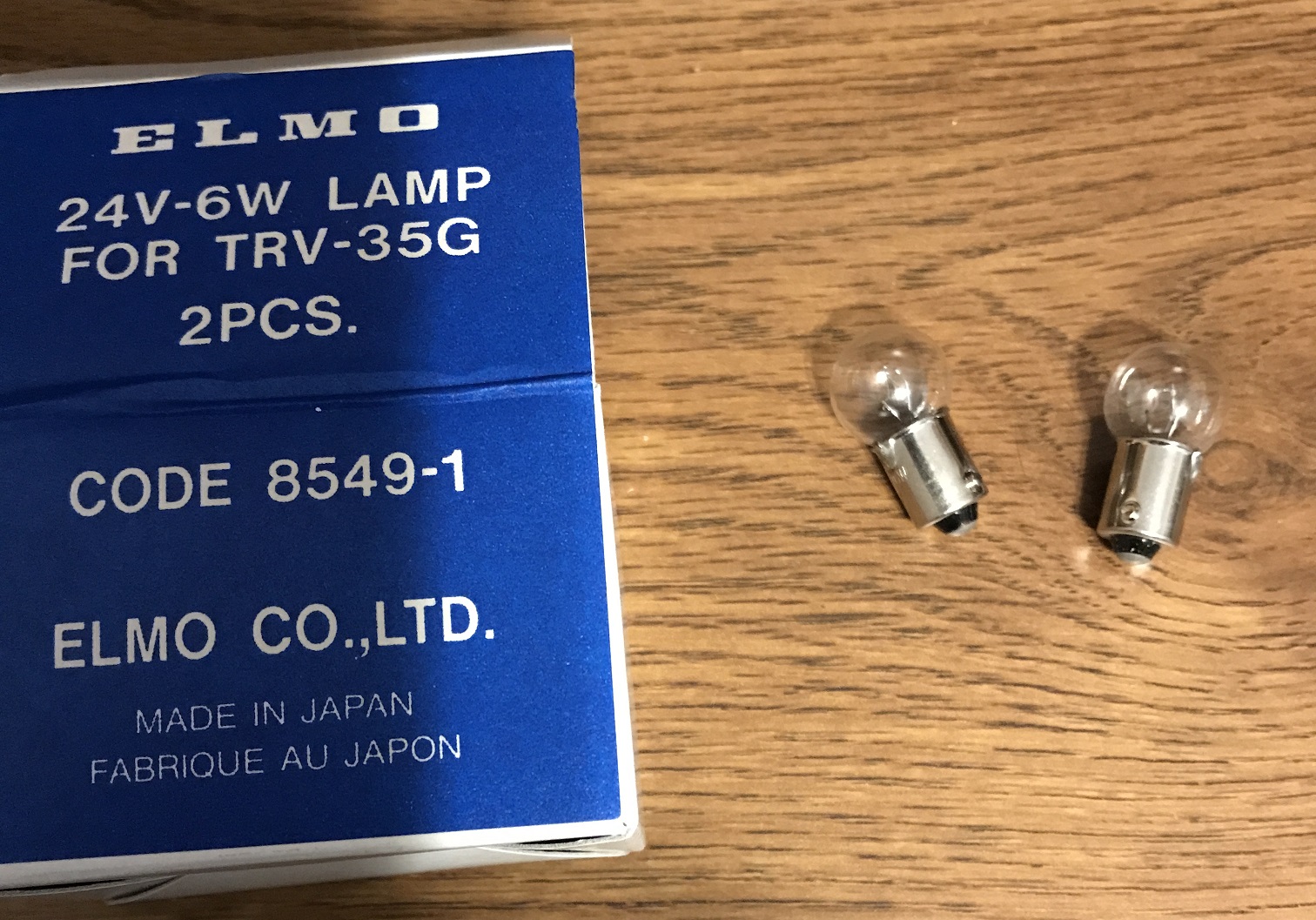

 24V-6W 2000 hr Lamp $12.00 for a set of 2

for TRV-35G, 35H, TRS-35XG Film to Video/Analog RGB Converters

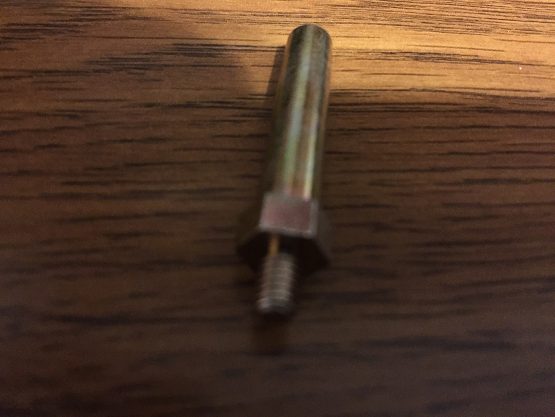

P 414769 Front Cover 12 Stud   $13.20

8 Left

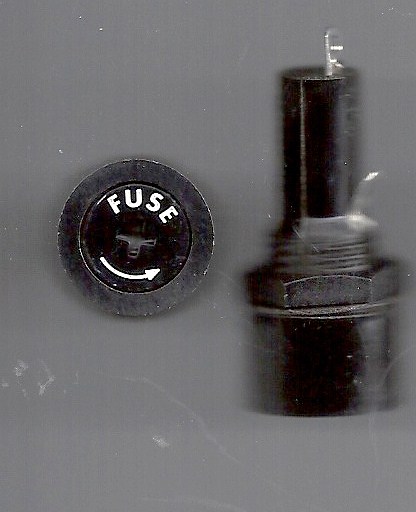

 5H2016   Fuse Holder     $16.50

11 Left



P 414086 Washer Brake for Spring  $4.00

2 Left

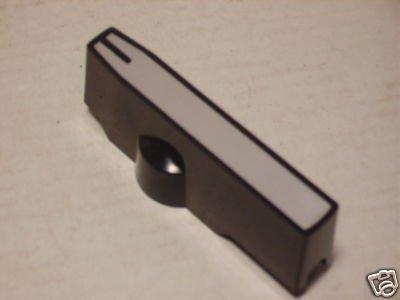

P 412229 Knob Amplifier  $5.00

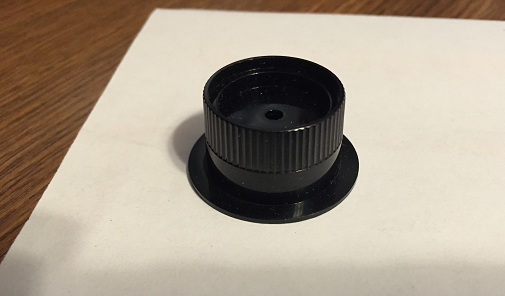

P 412186 Knob Focus  $10.00

1 Left









Prices subject to change.  If your part number is not listed. Or you do not know the part number. Please click HERE to contact RC.
